landmark hydraulics
8412210000

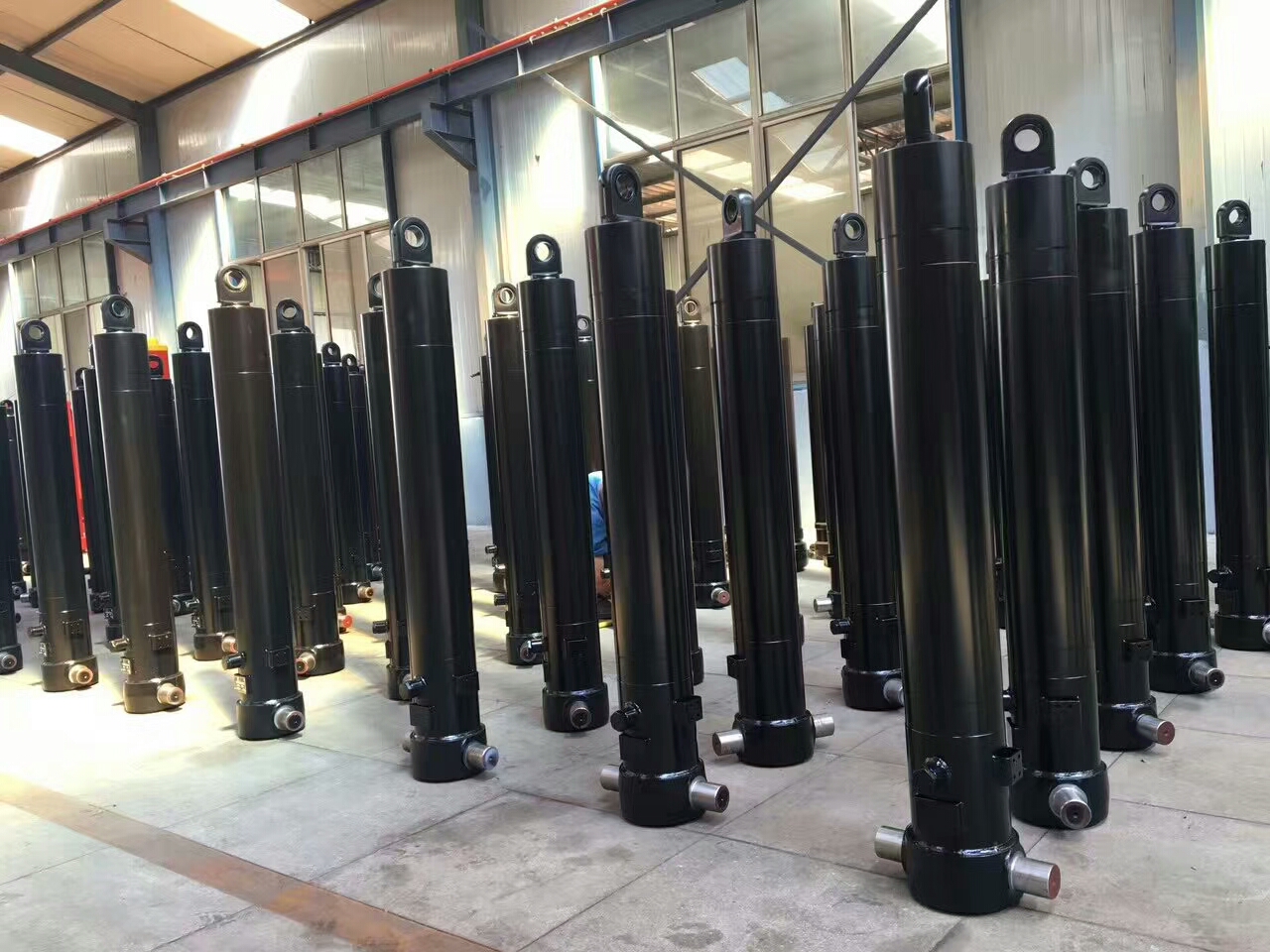

Telescopic Front End Hydraulic Cylinder
The multistage telescopic hydraulic cylinder(FC/FE/FEE) is used for dump trucks. It is interchangeable with Holland’s Hyva and UK’s Edbro. Bore size:75-278mm,Max stroke:12000mm,Max pressure:24Mpa,Max capacity:120T. We also can design it according to your request.
HS Code | 8412210000 |
Application | Dump truck, Tipper, Trailer |
Material of cylinder tube | CK20,CK45,27SiMn Quenched&Tempered Seamless Tube |
Seal Kits | Hallite, Kaden, NOK, SKF,ASTON etc |
Coating | All tubes are chrome plated |
Temperature | -30ºC-80ºC |
Working pressure | 10MPa-32MPa |
Stroke | 3000mm-12000mm |
Color | Black, Blue, Red, Yellow, White etc |
Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
Plunger | 20#, 45# steel with high frequency quenching |
Certification | ISO9001: 2008, TS16949, SGS |
Package | Shrink film, pallet, plywood case and carton |
Warranty | One year after shipping arrival |
Main export market | USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Egypt, Saudi Arabia, Tanzania, Zimbabwe, Bolivia, Italy |
Payment terms | T/T, L/C, West Union |
Delivery time | 30 days after down payment |
Telescopic Front End Hydraulic Cylinder
The multistage telescopic hydraulic cylinder(FC/FE/FEE) is used for dump trucks. It is interchangeable with Holland’s Hyva and UK’s Edbro. Bore size:75-278mm,Max stroke:12000mm,Max pressure:24Mpa,Max capacity:120T. We also can design it according to your request.
HS Code | 8412210000 |
Application | Dump truck, Tipper, Trailer |
Material of cylinder tube | CK20,CK45,27SiMn Quenched&Tempered Seamless Tube |
Seal Kits | Hallite, Kaden, NOK, SKF,ASTON etc |
Coating | All tubes are chrome plated |
Temperature | -30ºC-80ºC |
Working pressure | 10MPa-32MPa |
Stroke | 3000mm-12000mm |
Color | Black, Blue, Red, Yellow, White etc |
Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
Plunger | 20#, 45# steel with high frequency quenching |
Certification | ISO9001: 2008, TS16949, SGS |
Package | Shrink film, pallet, plywood case and carton |
Warranty | One year after shipping arrival |
Main export market | USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Egypt, Saudi Arabia, Tanzania, Zimbabwe, Bolivia, Italy |
Payment terms | T/T, L/C, West Union |
Delivery time | 30 days after down payment |
